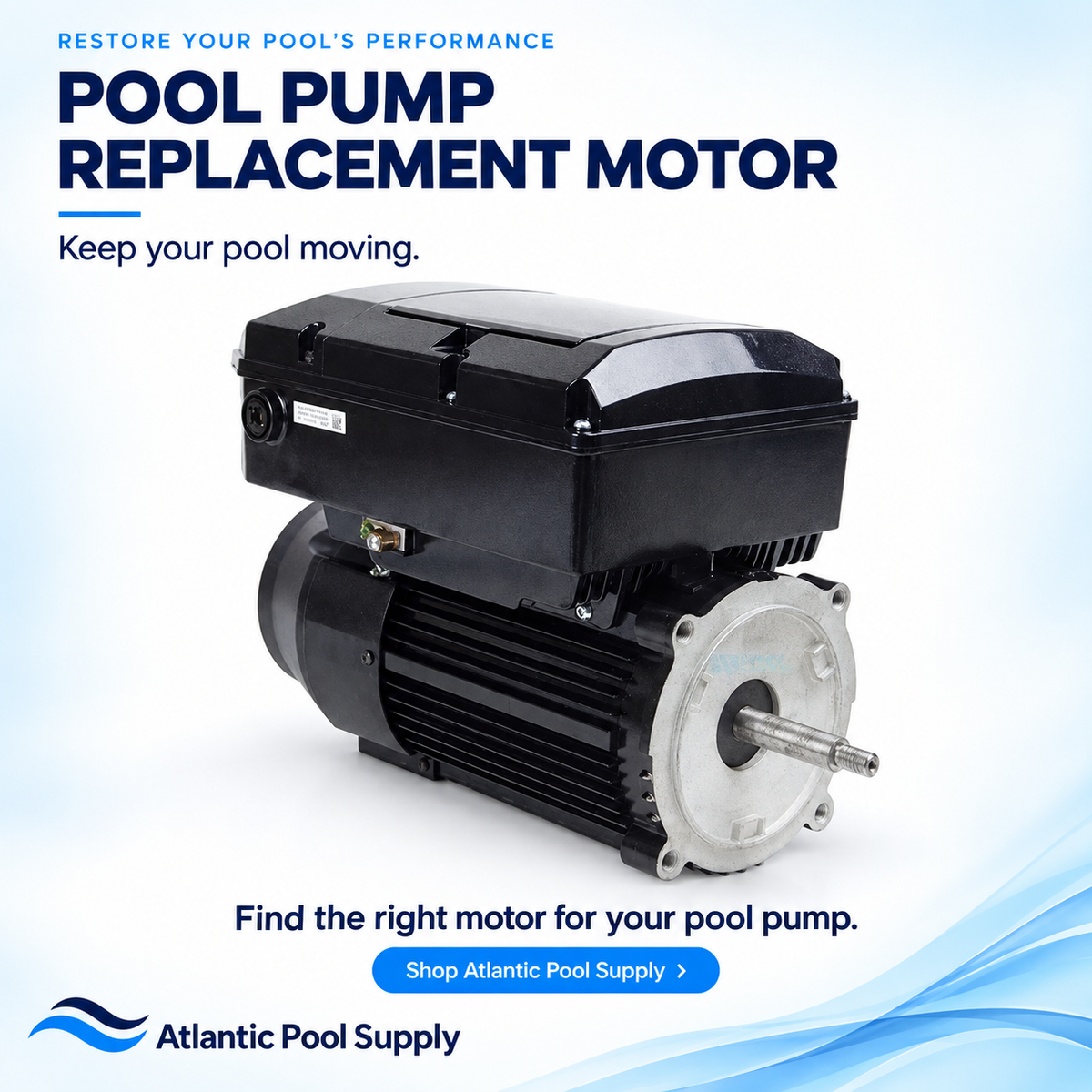

1.65 HP Neptune Variable Speed Pool Pump Motor – 56J C-Face – NPTT165

This is a U.S. Motors® Neptune variable speed pool pump motor rated 1.65 THP, with a 56J frame and C-Face (round flange) mount. It runs on 115/230V and adjusts continuously from 600–3450 RPM, giving quieter and more energy-efficient operation than a single-speed motor.

This motor is a direct replacement for older ASB128, AST165, HST150, and B128 motors, and fits Hayward Super Pump (SP2610C), Hayward Super II (SP3010C), and Jandy JHP-PP (R0555802) pumps.

Product Specifications:
• Manufacturer: U.S. Motors / Emerson (Nidec)
• Series: Neptune Variable Speed
• Horsepower: 1.65 THP
• Speed: Variable, 600–3450 RPM
• Frame: 56J, C-Face (round flange)
• Voltage: 115/230V
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Motor Type: Brushless Permanent Magnet
• Compliance: California Title 20 / Federal DOE variable-speed rule compliant

Fits and Replaces:
• Older ASB128, AST165, HST150, B128 motors
• Hayward Super Pump – SP2610C
• Hayward Super II – SP3010C
• Jandy JHP-PP – R0555802

Please confirm your existing motor's nameplate specs (frame, HP, mount type) before ordering to ensure correct fitment.
