1.65 HP Aqua-Shield PRO Pool Pump Motor – 48Y Square Flange – TEQ165

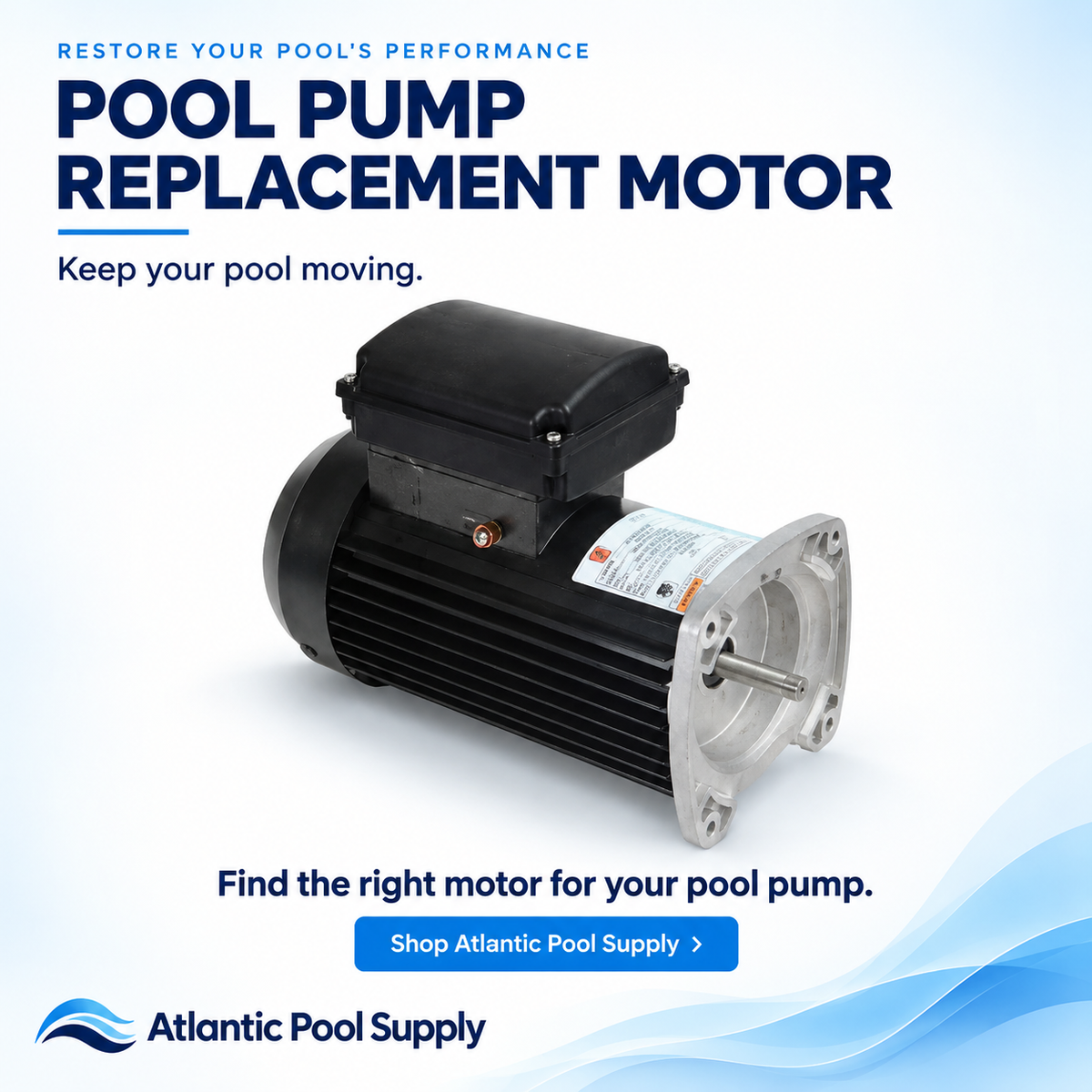

This is a U.S. Motors® Aqua-Shield PRO single-speed pool pump motor rated 1.65 HP, with a 48Y frame and square flange mount. It runs on 208-230/115V at a fixed 3450 RPM and is TEFC (totally enclosed, fan cooled) for added protection against moisture and debris.

The square flange mount fits the same bolt pattern used by Pentair and other square-mount pump housings in this horsepower class.

Product Specifications:
• Manufacturer: U.S. Motors / Emerson (Nidec)
• Series: Aqua-Shield PRO
• Horsepower: 1.65 HP
• Speed: Single speed, 3450 RPM
• Frame: 48Y, Square Flange
• Voltage: 208-230/115V
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Service Factor: 1.0
• Full Load Amps: 8.1-7.2/14.4

Fits:
• Square-flange pool pumps in the 1.65 HP class (Pentair-style square mount)

Please confirm your existing motor's nameplate specs (frame, HP, mount type) before ordering to ensure correct fitment.
