1.65 HP Aqua-Shield PRO Pool Pump Motor – 56J C-Flange – TET165

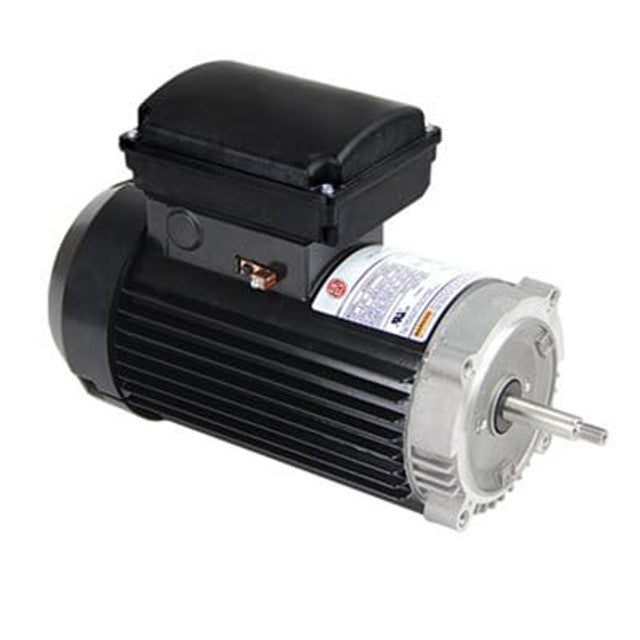

This is a U.S. Motors® Aqua-Shield PRO single-speed pool pump motor rated 1.65 HP, with a 56J frame and C-Flange (round) mount. It runs on 208-230/115V at a fixed 3450 RPM and is TEFC (totally enclosed, fan cooled) for added protection against moisture and debris.

The round C-Flange mount fits the same bolt pattern used by Hayward and other round-mount pump housings in this horsepower class.

Product Specifications:
• Manufacturer: U.S. Motors / Emerson (Nidec)
• Series: Aqua-Shield PRO
• Horsepower: 1.65 HP
• Speed: Single speed, 3450 RPM
• Frame: 56J, C-Flange (round mount)
• Voltage: 208-230/115V
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Full Load Amps: 8.1-7.2/14.4

Fits:
• Round/C-flange pool pumps in the 1.65 HP class (Hayward-style round mount)

Please confirm your existing motor's nameplate specs (frame, HP, mount type) before ordering to ensure correct fitment.
